Cling Film Perforation Rewinding Machine

PPD-ACRP450

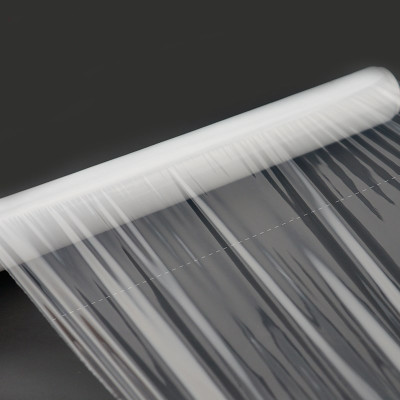

Cling film perforation rewinding machine is design for manufacturing of cling film roll with dotting line for easy tear off the film instead of the cutting blade on the box,in a way,this is to save the user cost as a selling point.
Machine is with 5 shaft automatic exchange the paper core,converting material rapidly and consistently to give finished rolls of the highest quality.


Technical parameters:
Name:Cling film perforation rewinding machine
Model:PPD-ACRP450
Material:Food cling film,food stretch film
Mother roll width:max450mm
Mother roll inner diameter:76mm
Mother roll outer diameter:500mm
Rewind roll width:max 450mm
Rewind roll inner diameter:30/35mm option
Design speed:max650m/min
Power:4kw
Voltage:220/380/415/450v
Packing size:1550*1300*1650mm
Weight:880kgs
NOTE:Different sizes can be customized.
