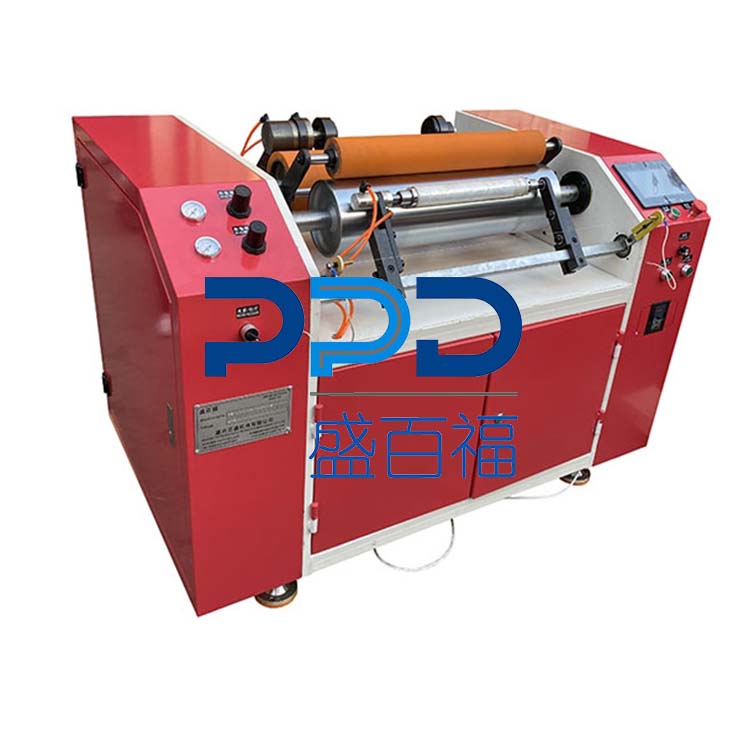

Semi Automatic PVC Cling Film Rewinder

PPD-SACW600

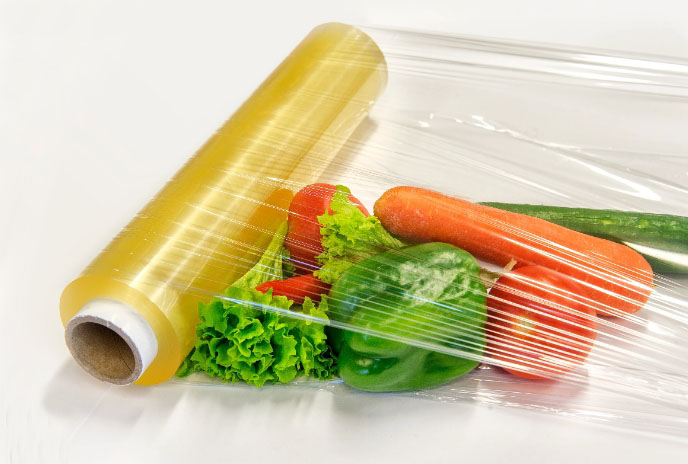

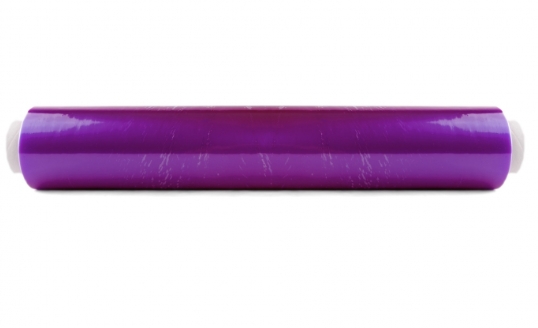

Semi automatic PVC cling film rewinder is a multi-functional model.It's mainly for rewinding PE/PVC cling film,food PE stretch film and the industrial stretch film.While it's light and small, it can afford material width up to 600 mm,and the finished paper core's ID from 38/50/76mm.

Features：
1.Simple touch screen interface and PLC program control, easily operate.The length can be viewed at any time on the touch screen during rewinding.
2.The parameters can be set according to the user's usage habits to achieve higher rewinding efficiency.Simple mechanical device makes it easier and faster for users to adjust the machine.

Main Data:

Name:Semi Automatic PVC Cling Film Rewinder

Model:PPD-SACW600

Raw material:PVC food cling film,PE cling film,food PE

stretch film,Industrial stretch film etc

Mother roll width:max600mm

Mother roll diameter:max400mm

Mother roll core diameter:3''(76 mm)

Rewind roll width:max600mm

Rewind roll length:5-500m option

Rewind roll ID:38/50/76mm or as customized sizes

Max finished rolls diameter:max150mm

Speed:max300m/min

Voltage:220/380/415V,50Hz

Power:1.5kw
