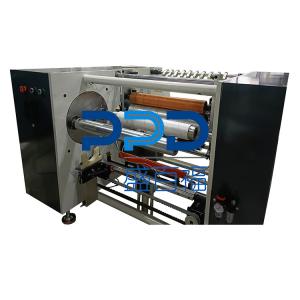

2 Shaft Stretch Film Slitting Machine (Auto Slitting)

PPD-SFASR500

2 shaft stretch film slitting machine (auto slitting) works with touch screen and controls by PLC program and inverter control of speed.
This model is an air shaft slitting rewinding machine that can
do both automatic slitting and automatic rewinding.It is pneumatic control to automatic take off the final product roll which is more higher efficiency than traditional stretch film slitting model.High degree in automation.

Features:
1.2 shaft automatic exchange,automatic slitting,automatic heating wire cutting of the finished product roll,automatic release the product rolls,no need take off by hand.
2.Multi functional model,can do both slt and rewinder.
3.High efficient and high speed rewinding,max600m/min.

Main Data:

Name:2 Shaft Stretch Film Slitting Machine (Auto Slitting)

Model:PPD-SFASR500

Unwind roll width:500mm

Unwind  roll OD:max500mm

Slitting rewinding roll width:50-500mm

Rewinding roll ID:3inch air shaft

Rewinding roll OD:max180mm

Speed:0-600m/min

Voltage:220/380/415V,50Hz
