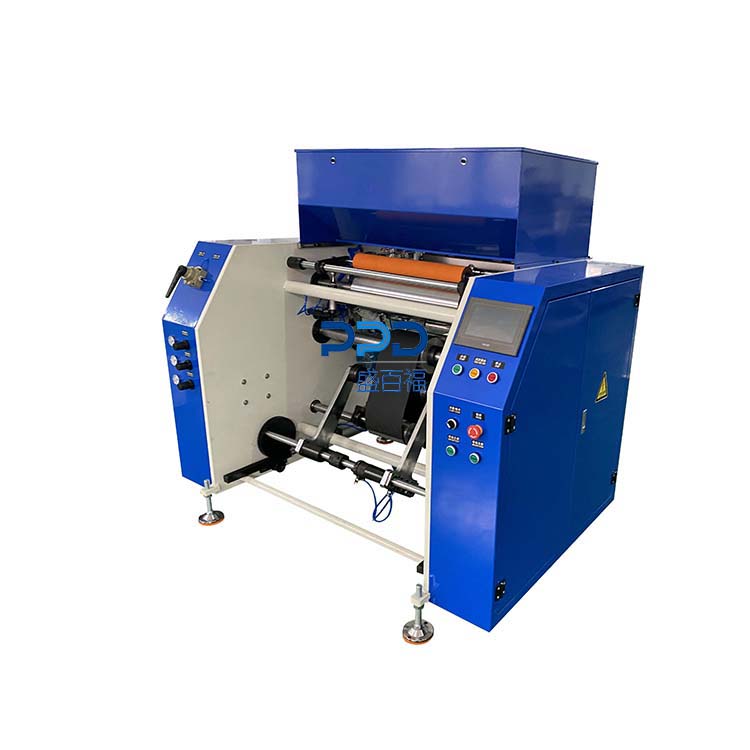

5 Shaft Automatic Curly Edge Cling Film Roll Rewinder

PPD-5SH300CE

5 shaft automatic curly edge cling film roll rewinder is a highly efficient, highly automated, specialized machine designed to rewind large diameter rolls of cling film into small diamater finished rolls.
Machine is suitable for rewinding of PE cling film,PVC cling film,PE food stretch film rolls with the end of roll curl.

Features:
1. Five rewinding stations operate in rotation, enabling nearly continuous production and significantly improving efficiency, making it particularly suitable for batch production.
2. This machine is suitable for rewinding small rolls, such as 5m, 10m, 20m, 50m, and up to 150m.
3. A user-friendly human-machine interface facilitates parameter settings (length, speed, etc.) and status monitoring (speed, length, etc.).

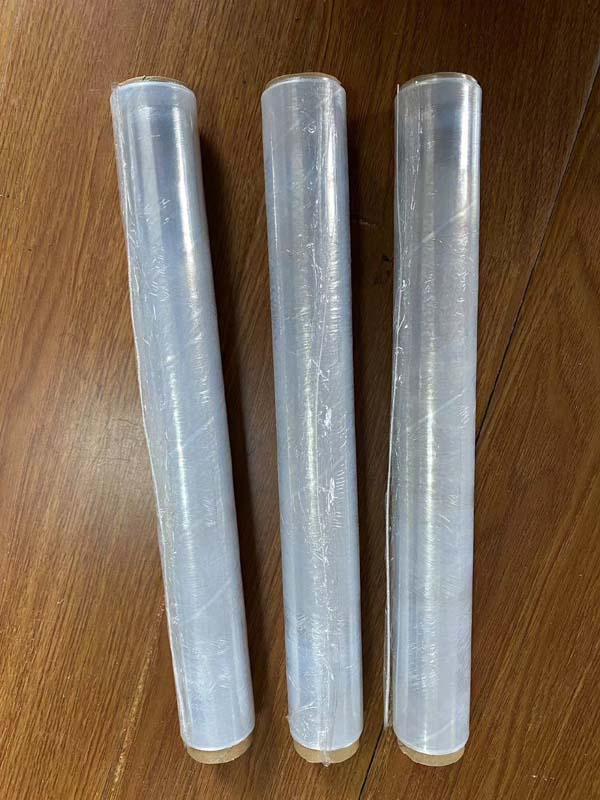

4. The finished rolls have curled edges for easy peeling.

Main Data:

Name: 5 Shaft Automatic Curly Edge Cling Film Roll Rewinder

Model: PPD-5SH300CE

Material: PE cling film, PVC cling film, food-grade PE stretch film

Jumbo roll Width: 300mm

Jumbo roll  outer diameter: max400mm

Jumbo roll  inner diameter: 76mm

Rewind roll width: max300mm

Rewind roll inner diameter: 30/35/38/40mm (optional)

Rewind roll length: max150m

Speed: 0-600m/min, max6 rolls (30m/roll)/min

Voltage: 220V/380V/415V, 50Hz

Power: 4kw
