PVC Cling Film Slitter Rewinder
PPD-CFSR500
PVC cling film slitter rewinder is a machine used to convert large master rolls of PVC cling film into smaller, narrower rolls for commercial or household use.
Machine can slit rewind of PE stretch film and other types of food wrap also.
Features:
1.The process involves three main steps: unwinding, slitting and rewinding.
2.Unwinding: A large master roll of PVC cling film is mounted on the machine and fed through it.
3.Slitting: Cut into narrower rolls by a series of straight utility knife system.
4.The cutting positions can be adjusted to produce rolls of various widths.

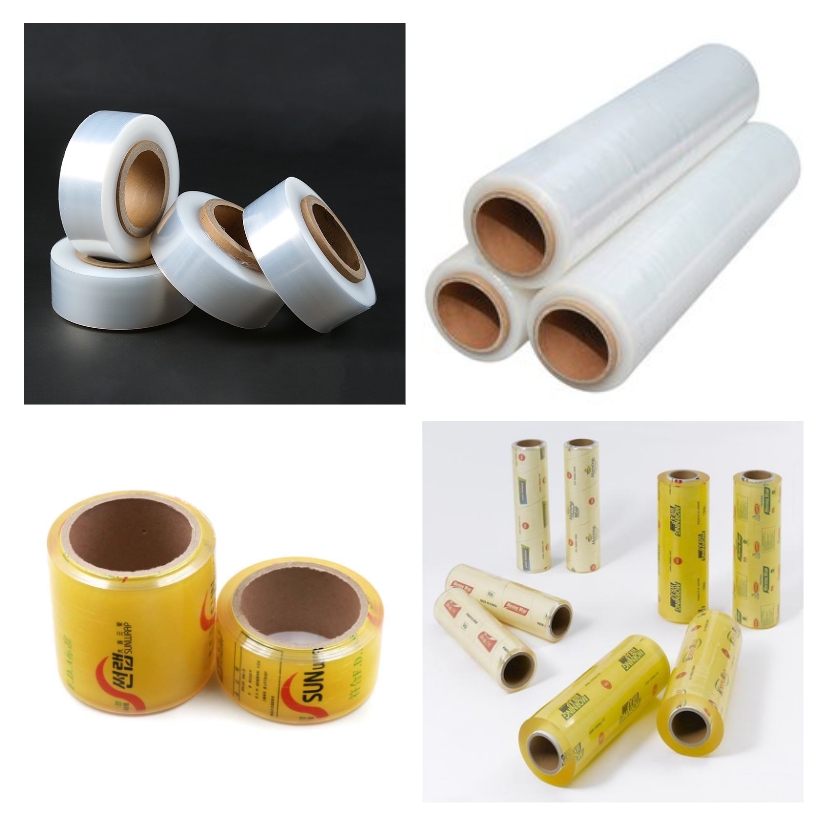

5.Rewinding: Rewind the narrower films onto smaller paper or plastic cores to create the finished rolls.
Machine can slit rewind of PE stretch film and other types of food wrap also.
Features:
1.The process involves three main steps: unwinding, slitting and rewinding.
2.Unwinding: A large master roll of PVC cling film is mounted on the machine and fed through it.
3.Slitting: Cut into narrower rolls by a series of straight utility knife system.
4.The cutting positions can be adjusted to produce rolls of various widths.
5.Rewinding: Rewind the narrower films onto smaller paper or plastic cores to create the finished rolls.
Main Data：
Name: PVC Cling Film Slitter Rewinder
Model:PPD-CFSR500
Master roll width:500mm
Master roll OD:max450mm
Master roll ID:76mm
Slit rewind roll width:50-500mm option
Slit rewind roll ID:38/50/76mm
Slit rewind roll OD:max180mm
Speed:max600m/min
Voltage:220/380/415V,50Hz
Power:2.57kw
