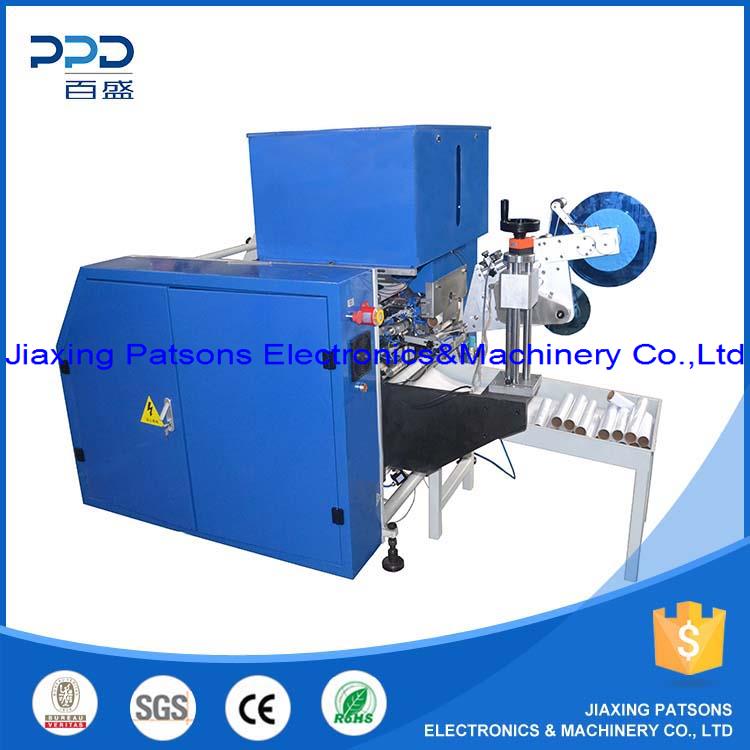

Fully Automatic Food Stretch Wrap Film Roll Dotting & Labeling & Rewinding Machine

PPD-ACR450L

Machine is newly developed model for making the consumer cling wrap roll with labeling attached,It will make the tear off the film easier when the arrow direction is indicated.and as an option,the perforation line is available if needed for easy tear off for covering a food container or plate.
The machine designed for 5 shaft automatic rapid change for improve the paper core changing speed.
It can work with both PE cling wrap,and PVC cling film for casting film and blowing film.
By PLC smart unit co-work with LCD touch screen,it is most user friendly,and non-skilled operator can run the machine.
Technical parameters:
Material:PE cling wrap/PVC cling film
Master roll width:100-450mm
Master roll ID:3inch
Master roll OD:450mm
Rewind roll width:max 450mm
Rewind roll inner core diameter:25/32/35mm etc
Rewind roll length set:max 150mtrs
Speed:650m/min max
Power:4kw
Air supply:0.3Mpa
Voltage:220/380/415/450v

Note:The different specs are accepted for a customized model.
