2 Shaft Semi Auto Silicon Paper Aluminium Foil Rewinder

PPD-2SBP450

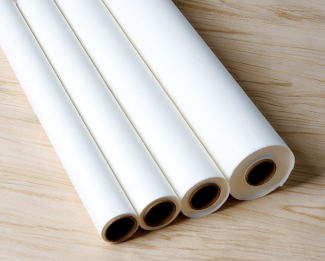

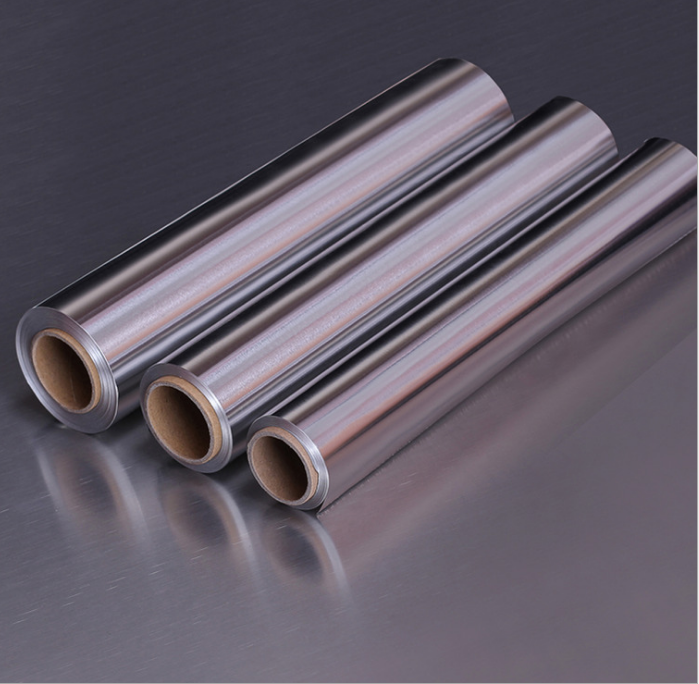

2 shaft semi auto silicon paper aluminium foil rewinder is our latest model to rewind of slicon paper,baking paper,PE coated paper,bakery paper,wax paper and aluminium foil roll etc.
Machine is mainly for rewinding big mother roll into small
products roll.

Features:
1.PLC and manual control panel together with inverter control system.
2.Air shaft controlled by magnetic powder to avoide the mother roll moving,
3.2 shaft exchange paper core,automatic counting,user friendly.

Main Data:

Name:2 Shaft Semi Auto Silicon Paper Aluminium Foil Rewinder

Model:PPD-2SBP450

Width of mother roll:450mm

Mother roll diameter:max800mm

Width of finish roll:max450mm

Finish roll diameter:max100mm

Core of mother roll 76mm

Core of finish roll:30/35/38mm option

Voltage:220/380/415V

Speed:Max300m/min

Packing size:1850*1750*1350mm

Weight:870kg
