Semi Automatic Saw Blade Machine

PPD-SASBM450

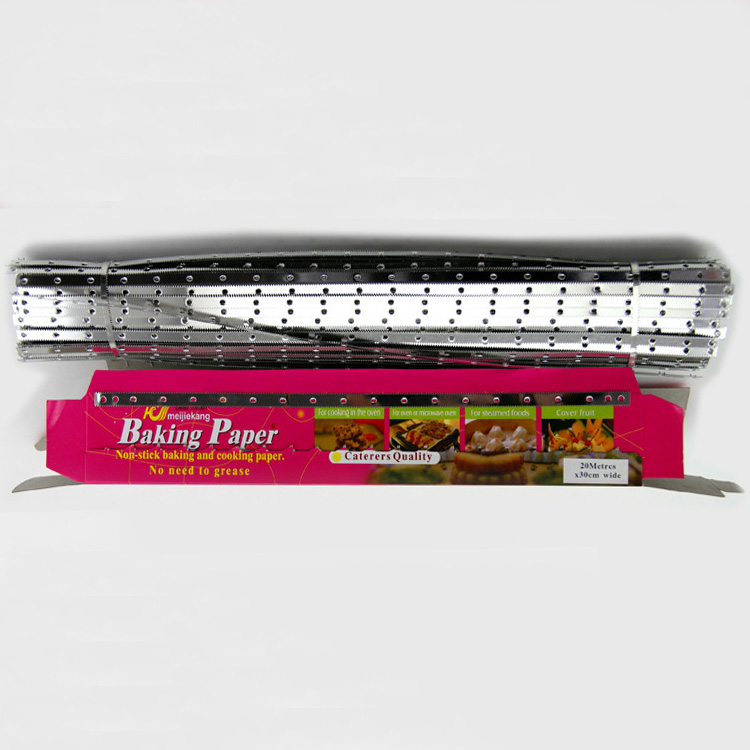

Semi automatic saw blade machine is mainly used for the binding of aluminum foil silicone oil paper plastic wrap color box saw teeth.

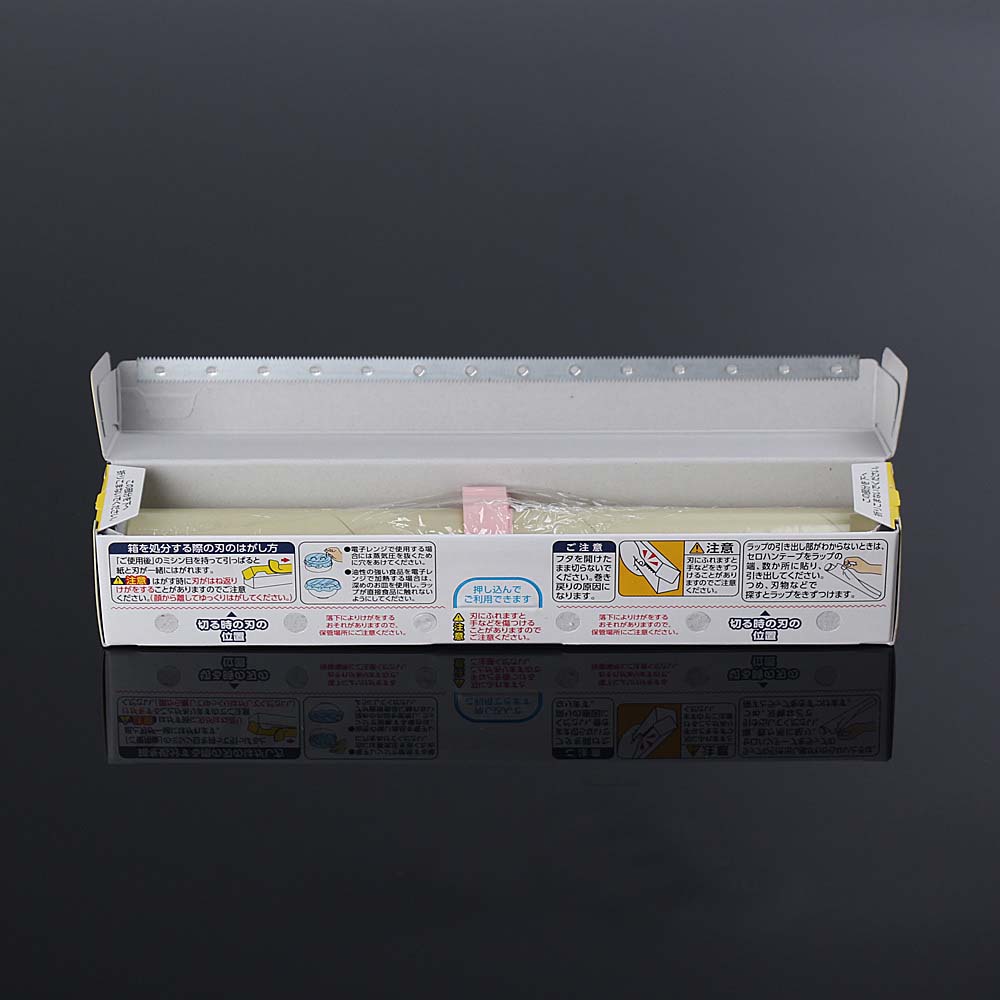

It mainly binds the metal saw blade to a specific position of the packaging box, then manually puts the box into the mold, and then starts the machine for binding through the foot switch, and then takes out the box after completion.
Machine consists of two parts: the saw blade binding machine and the heavy material rack.

Features:
1. The saw blade mold can be selected according to product requirements: coarse teeth. Fine teeth: round holes and square holes riveted.
2. The binding position is optional, usually the teeth are flush with the color box, and can also be customized to any position within 50mm from the edge of the color box.
3. The machine is equipped with servo motor, reduction motor, touch screen and PLC control, with high power and long-term stable operation.

Technical parameters:

I. Saw blade binding machine


Maximum nominal pressure: 600KN

Maximum raw material width: 470mm (requires 250-460mm width raw materials)

Maximum raw material diameter: 800mm

Production speed: 45-70pcs/min

Slider stroke:: 120-260mm

Mold height: 210-270mm

Mold height adjustment: 60mm

Press motor power: 5kw

Feeding length: 3-1999mm

Feeding accuracy: ±0.1mm 100%

Saw blade material: tinplate/aluminum

Feeding of mother coil air expansion shaft: 500mm


II. Heavy material rack

Maximum feeding width: 500mm

Material thickness: 0-2.0mm

Inner diameter of coil: inner diameter 450-530mm

Outer diameter of coil: 1200mm

Feeding speed: 15m/min

Motor: 2HP

Maximum material weight: 1500kg
