Fully Automatic Aluminium Foil Rewinding Machine

PPD-AAR450

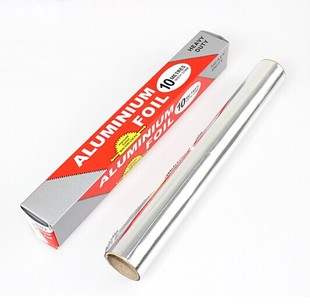

Machine is is designed for high speed production for aluminium house foil roll for kitchen using.
Machine designed with PLC man-machine interface talk programable logic controller,LCD touch screen for monitoring by one press only.
Machine is with automatic gluing,automatic start rewinding,automatic stop when reach length setting,automatic change for the new paper core,And automatic deliver the finished roll to the convery belt for ready packing.

Technical Data:
Unwind roll thickness:7-30micro
Unwind roll width range:250 to 450mm
Unwind roll diameter: Max 600mm
Mother roll core inner diameter: 3/6inch
Finished Roll Rewinding Core id : 25.4/35/38/40mm
Rewinding length finished roll control: 3 to 50m
Production Speed (basing 5M length) : 7-10 rolls / minute
Unloading magnetic power brake system: 25N.M
Winding magnetic power clutch: 50N.M
Electrical Power & Supply : 4KW
Weight of machine : 1500kg
Machine Dimension (L x W x H): 4164mm x 1100mm x 1820mm
