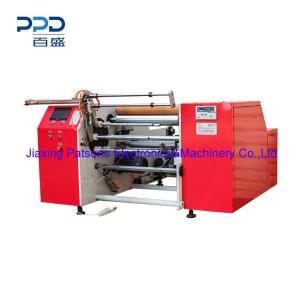

Automatic 6 Turret Coreless Baking Paper Book Cover Rewinder

PPD-CSP450A

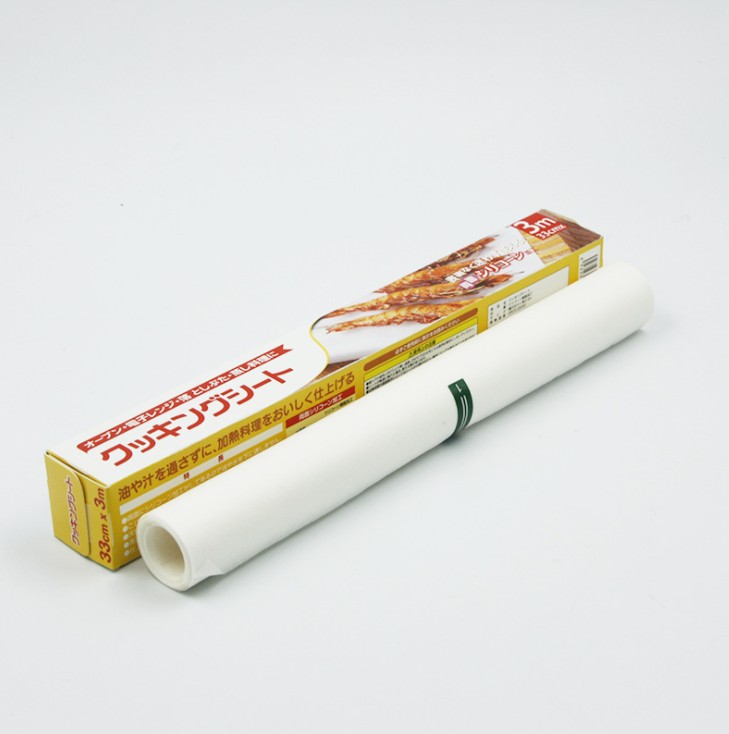

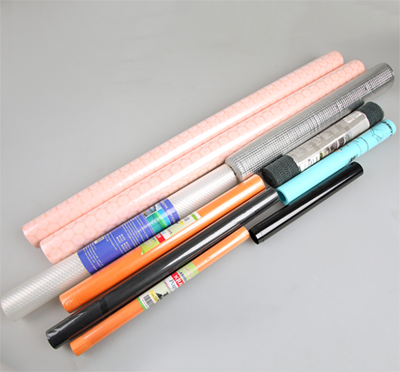

Automatic 6 turret coreless baking paper book cover rewinder is used to rewind of silicon paper,bakery paper,baking paper roll,wax paper ,PE coated paper,wax paper,hanburger paper,cooking paper,gift paper roll,book cover etc without paper core or plastic core.
Machine adopts 6 turret rewinding system,high production output.
Machine works with auto arm function to easy take off the finished roll,user friendly.


Features：
1.With 6 turret rewinding,high efficient.
2.Coreless rewinding,save the cost of paper core and plastic core a lot.
3.Rewind the big jumbo roll to the small product roll,max to the 60meters coreless product roll.

Main Data:

Name:Automatic 6 Turret Coreless Baking Paper Book Cover Rewinder

Model:PPD-CSP450A

Width of jumbo roll :max450mm

Outer diameter of jumbo roll:max 600mm

Inner diameter of jumbo roll:76mm(3inch)

Inner diameter of finished roll:coreless 25mm or as customized size.

Length of finished roll:max 60meters

Speed:max 600rpm/min

Voltage:220/380/415/450v,3ph(option)

Power:2.5 kw

NOTE:Different sizes can be customzied.
