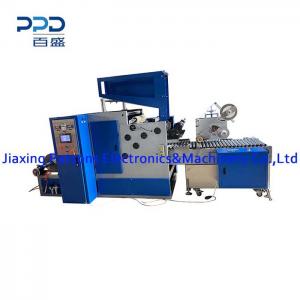

Fully Auto Baking Paper Silicon Paper Rewinder With Auto Label Sticker

PPD-ABPL450

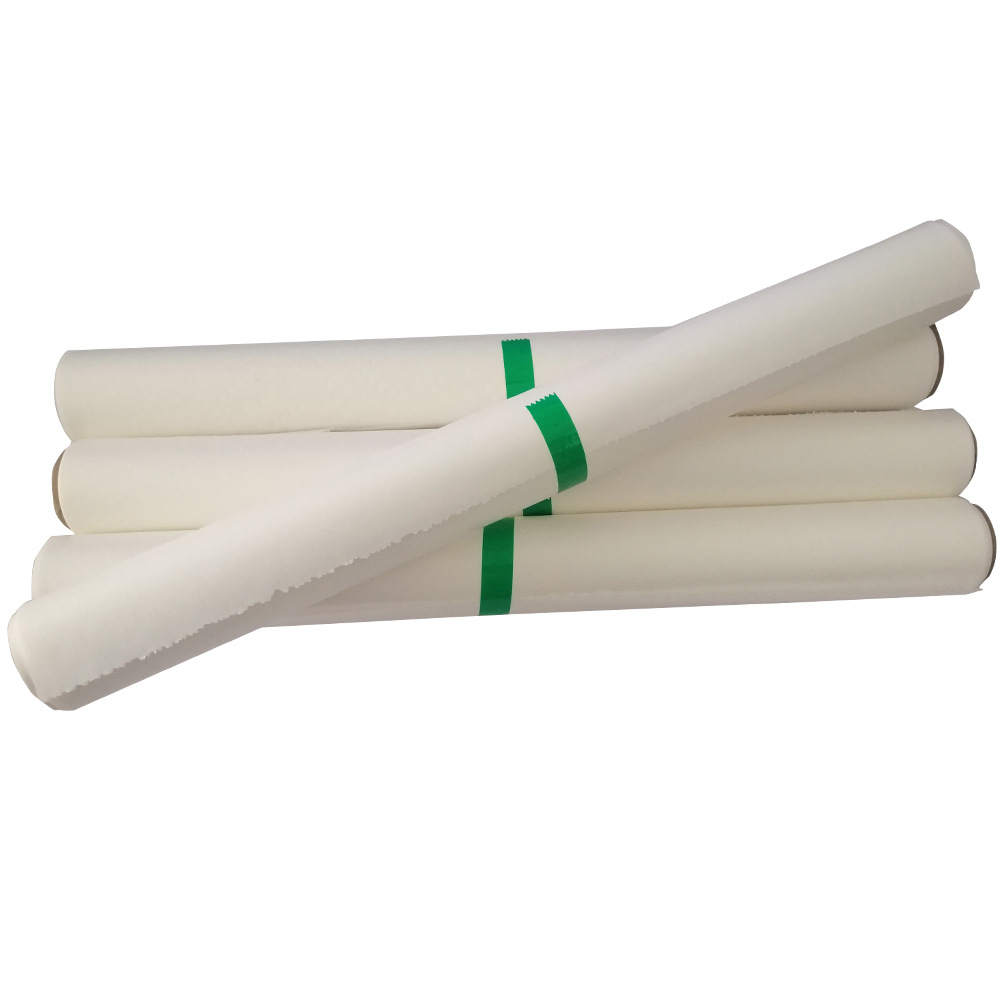

Fully auto baking paper silcion paper rewinder with auto label sticker is designed for the rapid rewinding of food paper from longer length jumbo roll into shorter length small roll.
Machine adopts four station rewinding shaft, automatic exchanging, automatic glue coating,PLC, touch screen control and program,Molding products,high production,good efficiency,craet high value.


1.The layout and operation make it user friendly and ideal for volume production.
2.A skilled operator is not required.
3.Both aluminium foil and food paper supported.

Machine data:

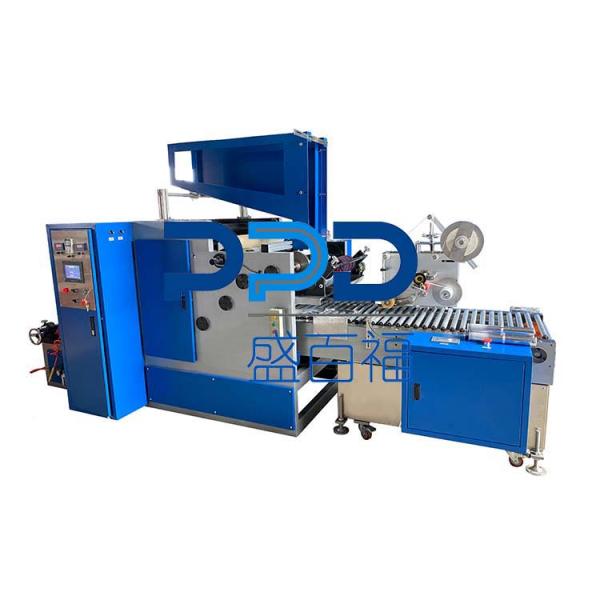

Name:Fully Auto Baking Paper Silicon Paper Rewinder With Auto Label Sticker

Model:PPD-ABPL450

Jumbo roll width:max 450mm

Jumbo  roll diameter:max600mm

Jumbo  roll loading way:Air shaft

Jumbo roll inner diameter:3/6inch(option)

Rewind roll inner diameter:25/30/38/40mm(option)

Rewind roll length:max 100meters

Production speed:2.8m/s

Voltage:220/380/415/450v,3ph option

Power:4 kw

NOTE:Different sizes can be customized as buyer requirement.
