Fully Automatic Cling Film Stretch Film Rewinding Machine

PPD-ARW500

Fully automatic cling film stretch film rewinding machine is a multi function model to do both food cling film and PE stretch film rewinding with different size paper core.
It works with PLC touch screen,workers can operate easily.One worker can operate two or three machines at the same time.

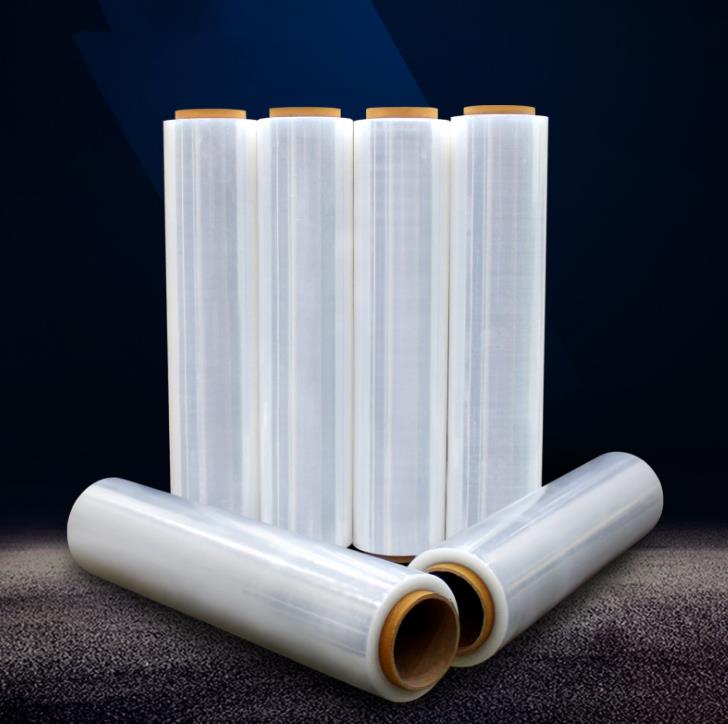

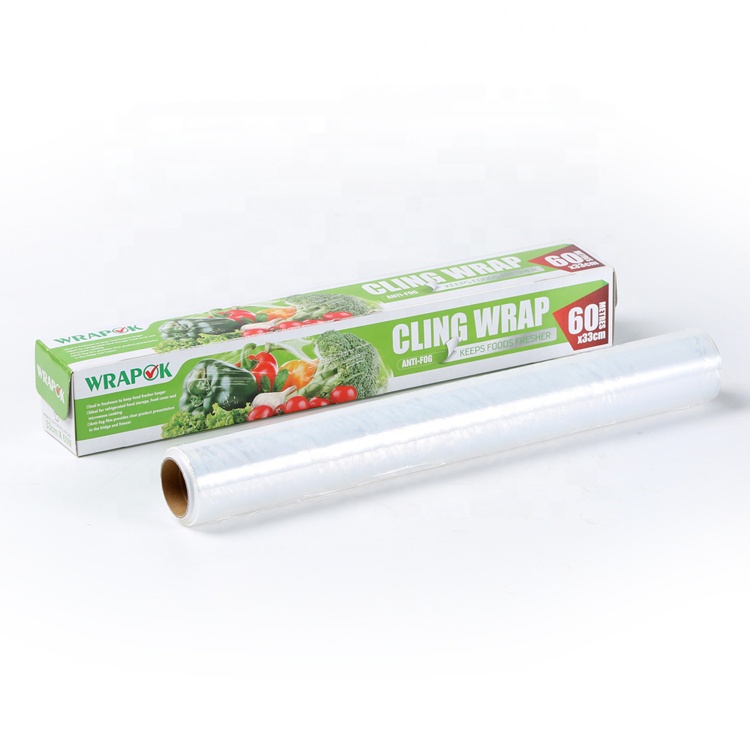

It is suit for hand rolls,stretch film rolls,machine rolls ,PVC cling film rolls and PE cling film rolls etc..

Features:

1.It is automatic paper core changing,automatic cutting,and product automatic deliver by conveyor belt, more efficiency and reduce the production costs a lot.

2:The electrical parts adopt Chins top brands to make the machine more stable.

3.This model can hold for heavy duty production.

Machine data:

Machine name:Fully automatic cling film stretch film rewinding machine

Machine model:PPD-ARW500

Jumbo roll width:max500

Jumbo roll diameter:maximum 400mm

Jumbo roll inner diameter:3inch

Rewind roll inner diameter:30/35/38/50/76mm(or as customized)

Rewind roll length:50meters,100meters,300meters,600meters(option)

Rewinding speed:maximum 900m/min

Voltage:220/380/415/450v,3ph(option)

Power:4kw

Weight:1000kg

Machine packing size:1500*1500*1650mm

Conveyor packing size:2200*750*1150mm

NOTE:Different sizes can be customized.
