Aluminium Foil Container Making Machine

PPD-45T

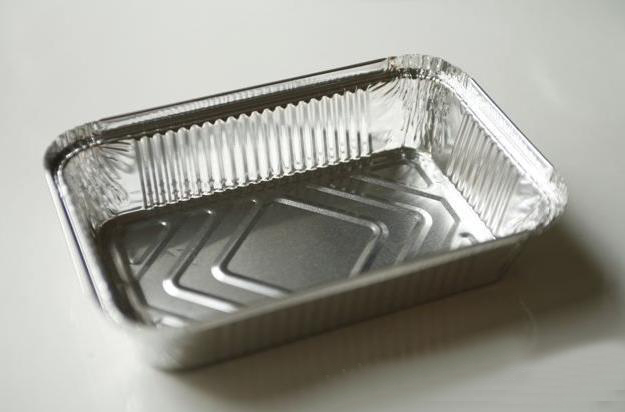

Aluminium foil container making machine is a small production line for making of airline food aluminium foil tray,aluminium foil plates,aluminium foil container etc.
The production line includes automatic feeder,high accuracy press,product collecting table,the mould is optional for buyers.

I:Automatic Feeder.
Max. Width of Roll:500mm
Max. Unwind Roll Diameter: Ф600mm
Feeding Speed: 0-35m/min
Feeding Length: 20-999mm
Feeding Accuracy: ±0.3
Working Voltage: 380/220V option
Total power:1kw
Weight:850kg
Machine dimension: 2000*1300*900mm


II:High Accuracy Press
Nominal Pressure:450KN
Slide Block Stroke: 100-260mm
Slide Stroke Per Minutes: 70-50pcs/min
Maximum Die Set Height: 270-400mm
Die Set Height Adjustment:60mm
Slide Bottom Size: 410*340mm
Stemhole Size: Ф60*60mm
Bolster Surface Size: 810*440/990*750mm
Total Power: 5.5kw
Weight: 3800-4500kgs
Machine dimension: 1550*1150*2500mm
