Automatic Cling Film Cartoning Machine

PPD-CFCM350

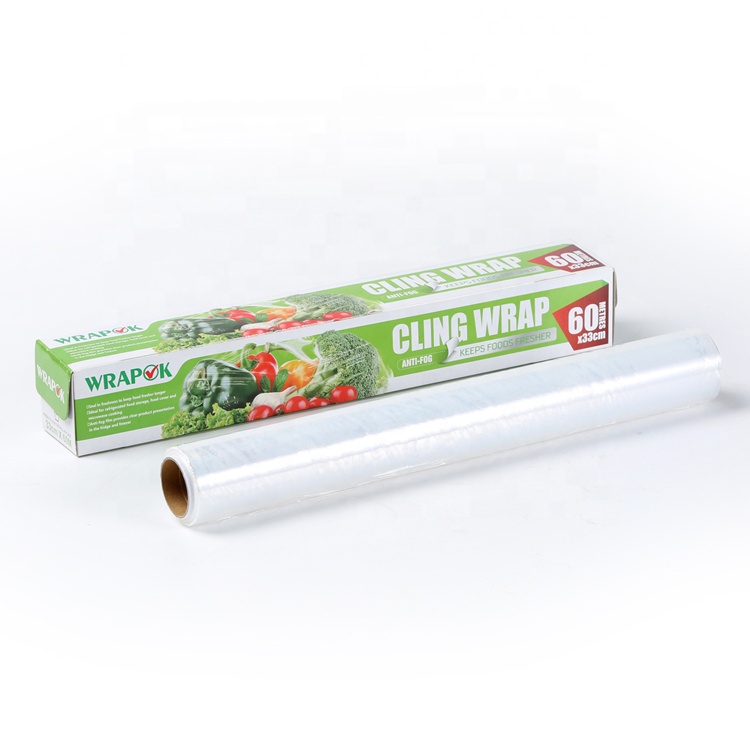

Autoatic cling film cartoning machine is suitable for pack cling film in cartons and seal.
The machine finished running by a series of photo electro controller to make the machine stability and guarantee the packing quality. It includes 1to 4 folds leaflet The machine can finish all jobs automatically such as leaflet folding, carton opening automatically, the stuff cartoned,carton sealing and so on.
It can be used alone, or be linked with the other device, to be a production line.

Features:
1.The machine is equipped with a series of sensors and automatic protective devices to assure the machine runs safely and effectively.

2.Simple structure in linear type ,easy in installation and maintation. Running in a high automatization and intellectualization,no pollution

4.It can connect with the Blister Machine, Pillow Packaging Machine, Shrink Packaging Machine , etc., to form a Packaging Line.

Machine data:

Name: Automatic Cling Film Cartoning Machine

Model:PPD-CFCM350

Max box size：350*60*60mm（L*W*H）or customized size

Min box size：150*30*30mm（L*W*H）or customized size

Speed：≤100bpm（box per minter）

Power Supply：AC380V 60HZ

Max power：4.0KW

Noise：≤80db

Available paper：≥350(G/SM）

Environment temperature：25± 10℃

Overall dimension：5050*2020*1750mm（L*W*H）

Weight：3000KG
